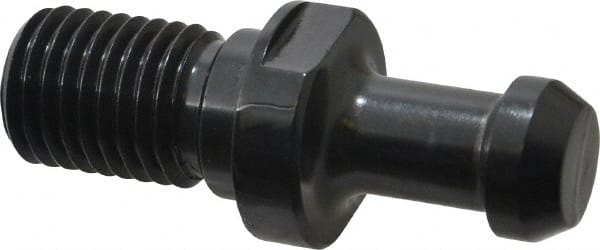

Parlec - C Style, BT50 Taper, M24x3 Thread, 60° Angle Radius, Standard Retention Knob - 3.34" OAL, 0.904" Knob Diam, 0.39" Flange Thickness, 1.77" from Knob to Flange, 0.983" Pilot Diam
Item #: 84930031
Brand: Parlec
Model #: 5004TRK
Exact Tooling IR#: 04
Features and Benefits
Retention knobs, also known as pull studs, are threaded components that enable the mounting of a toolholder to the spindle of a CNC milling machine. Retention knobs are held in the machine by a clamp or spring.
| Product Specifications | |
|---|---|
| Type | Standard |
| Taper Size | BT50 |
| Thread Size | M24x3 |
| Angle Radius | 60.00 |
| Knob Diameter (Decimal Inch) | 0.9040 |
| Through Coolant | No |
| Style | C |
| Neck Diameter (Decimal Inch) | 0.6670 |
| Pilot Diameter (Decimal Inch) | 0.9830 |
| Overall Length (Decimal Inch) | 3.3400 |
| Knob to Flange Length (Decimal Inch) | 1.7700 |
| Flange Thickness (Decimal Inch) | 0.3900 |
