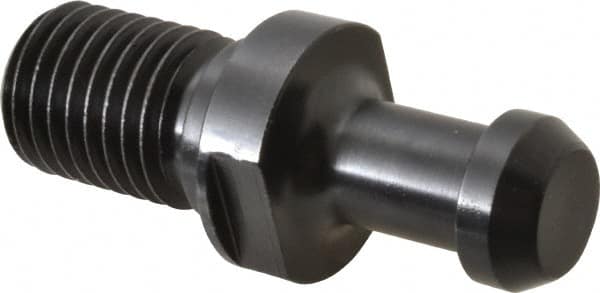

Parlec - B Style, CAT50 Taper, 1-8 Thread, 90° Angle Radius, Standard Retention Knob - 3.32" OAL, 0.904" Knob Diam, 0.4" Flange Thickness, 1.78" from Knob to Flange, 1.026" Pilot Diam
Item #: 84935311
Brand: Parlec
Model #: MH500TRK
Exact Tooling IR#: 04
Features and Benefits
Retention knobs, also known as pull studs, are threaded components that enable the mounting of a toolholder to the spindle of a CNC milling machine. Retention knobs are held in the machine by a clamp or spring.
| Product Specifications | |
|---|---|
| Type | Standard |
| Taper Size | CAT50 |
| Thread Size | 1-8 |
| Angle Radius | 90.00 |
| Knob Diameter (Decimal Inch) | 0.9040 |
| Through Coolant | No |
| Style | B |
| Neck Diameter (Decimal Inch) | 0.6670 |
| Pilot Diameter (Decimal Inch) | 1.0260 |
| Overall Length (Decimal Inch) | 3.3200 |
| Knob to Flange Length (Decimal Inch) | 1.7800 |
| Flange Thickness (Decimal Inch) | 0.4000 |
