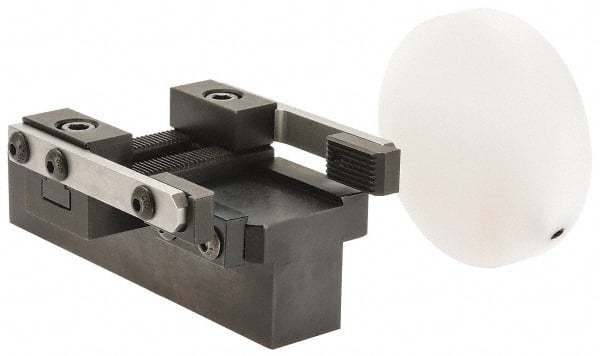

Royal Products - 1 Inch Square Shank Combination Cutoff Tool and Bar Puller - 1/8 to 2-1/4 Inch Gripping Range, 6-3/8 Inch Long, 2-5/8 Inch Wide
Item #: 84941111
Brand: Royal Products
Model #: 43460
Exact Tooling IR#: 04
Features and Benefits
Combination cut-off tool/bar pullers are designed with both the bar puller and the cut-off tool. They reduce cycle time by minimizing set up eliminating the need for the turret to index between cut-off and pulling operations.
| Product Specifications | |
|---|---|
| Type | Combination Cut-Off Tool/Bar Puller |
| Gripping Range (Inch) | 1/8 to 2-1/4 |
| Square Shank Size (Inch) | 1 |
| Overall Width (Inch) | 2-5/8 |
| Overall Length (Inch) | 6-3/8 |
| Head Width (Inch) | 1-3/16 |
| Maximum Depth of Cut (Inch) | 1-1/4 |
| Insert Width (Decimal Inch) | 0.1250 |
