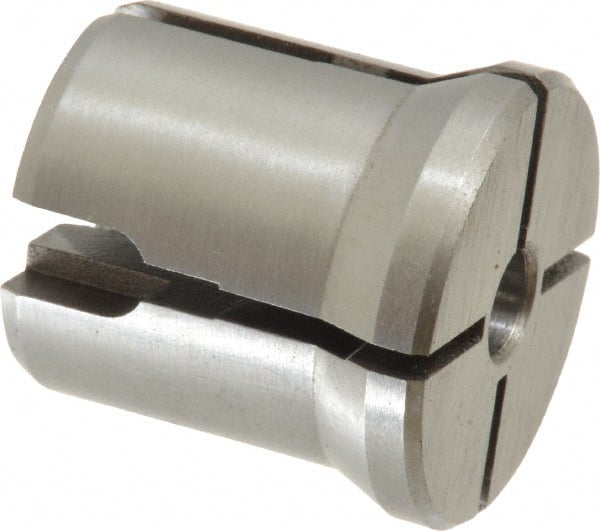

Kennametal - 0.255" Double Angle Series L Hand Tap Collet - 1/4" & #14 Tap
Item #: 84941954
Brand: Kennametal
Model #: 1016525
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Double Angle |
| Collet Series | L |
| Size (Decimal Inch) | 0.2550 |
| Tap Size (Metric) | M6; M6.3 |
| Tap Size | 1/4; #14 |
| Hand or Pipe Tap | Hand |
| Through Coolant | No |
| Tension Tap | No |
| Square Size (Decimal Inch) | 0.1910 |
| Overall Length (mm) | 27.79 |
| Overall Length (Decimal Inch) | 1.0940 |
| Overall Diameter (mm) | 28.09 |
| Overall Diameter (Decimal Inch) | 1.1060 |
| TIR (mm) | 0.0300 |
| TIR (Decimal Inch) | 0.001000 |
| PSC Code | 5136 |
