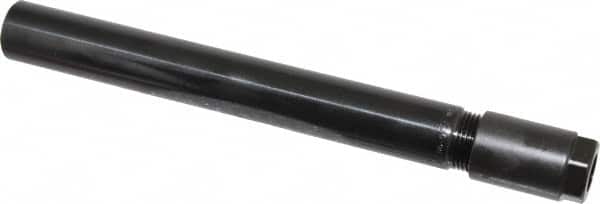

CRAFTSMAN Industries - 1/64" to 3/8" Capacity, Straight Shank, DA200 Collet Chuck - 7.1" OAL, 3/4" Shank Diam
Item #: 84993682
Brand: CRAFTSMAN Industries
Model #: TE200-0750
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | Double Angle |
| Collet Series | DA200 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 3/4 |
| Through Coolant | No |
| Minimum Collet Capacity (Inch) | 1/64 |
| Maximum Collet Capacity (Inch) | 3/8 |
| Overall Length (Decimal Inch) | 7.1000 |
| Nose Type | Stub Nose |
| Actuator Type | Wrench |
| Shank Length (Decimal Inch) | 5.7600 |
| Head Length (Inch) | 1-5/8 |
| Hex Diameter (Inch) | 11/16 |
| PSC Code | 5136 |
| Collet Nut Diameter (Decimal Inch) | 0.8100 |
