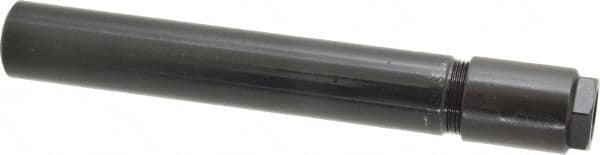

CRAFTSMAN Industries - 1/64" to 9/16" Capacity, Straight Shank, DA100 Collet Chuck - 7.3" OAL, 1" Shank Diam
Item #: 84993690
Brand: CRAFTSMAN Industries
Model #: TE100-1000
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | Double Angle |
| Collet Series | DA100 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1 |
| Through Coolant | No |
| Minimum Collet Capacity (Inch) | 1/64 |
| Maximum Collet Capacity (Inch) | 9/16 |
| Overall Length (Decimal Inch) | 7.3000 |
| Nose Type | Stub Nose |
| Actuator Type | Wrench |
| Shank Length (Decimal Inch) | 5.7600 |
| Head Length (Inch) | 1-13/16 |
| Hex Diameter (Inch) | 7/8 |
| PSC Code | 5136 |
| Collet Nut Diameter (Decimal Inch) | 1.0600 |
