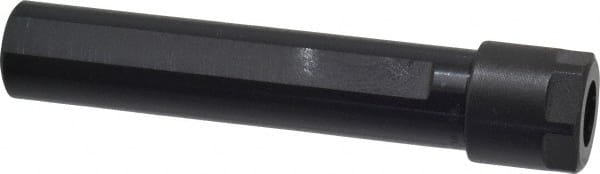

CRAFTSMAN Industries - 1/64" to 3/8" Capacity, Straight Shank, DA200 Collet Chuck - 3.75" OAL, 5/8" Shank Diam
Item #: 84993724
Brand: CRAFTSMAN Industries
Model #: TS200-0625
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | Double Angle |
| Collet Series | DA200 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 5/8 |
| Through Coolant | No |
| Minimum Collet Capacity (Inch) | 1/64 |
| Maximum Collet Capacity (Inch) | 3/8 |
| Overall Length (Decimal Inch) | 3.7500 |
| Nose Type | Stub Nose |
| Actuator Type | Wrench |
| Shank Length (Inch) | 3 |
| Shank Length (Decimal Inch) | 3.0400 |
| Hex Diameter (Inch) | 11/16 |
| PSC Code | 5136 |
| Collet Nut Diameter (Decimal Inch) | 0.7500 |
