Sherline - 3-1/2" Swing, 8" Between Centers, 100/240 Volt, Single Phase Miniature Lathe - 1MT Taper, 1/2 hp, 70 to 2,800 RPM, 10mm Bore Diam, 260mm Deep x 203.2mm High x 584.2mm Long - Exact Tooling

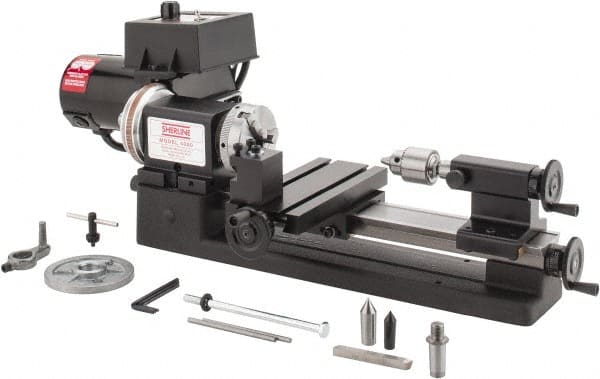

Sherline - 3-1/2" Swing, 8" Between Centers, 100/240 Volt, Single Phase Miniature Lathe - 1MT Taper, 1/2 hp, 70 to 2,800 RPM, 10mm Bore Diam, 260mm Deep x 203.2mm High x 584.2mm Long


Item #: 84999366
Brand: Sherline
Model #: 4000A
Exact Tooling IR#: 04

Features and Benefits

Miniature lathes, also known as hobby or micro-lathes, are used for machining small parts. They can have swings that range from 3" to 9" .
Frequency drive systems, also known as Electronic Variable Speed control (EVS), are similar to variable speed pulleys, but the speed is controlled electronically. These systems feature several speeds within a specified speed range.
Single-phase refers to one phase line (coil) that connects to and runs voltage through the motor. Single phase lines are not as efficient as three-phase motors.
Product Specifications
Machine Type Miniature Lathe
Spindle Speed Control Frequency
Phase 1
Voltage 100/240
Horsepower (HP) 1/2
Swing (Inch) 3-1/2
Distance Between Centers (Inch) 8
Spindle Bore Diameter (mm) 10.00
Spindle Taper Size 1MT
Swing Over Cross Slide (mm) 48.00
Swing Over Cross Slide (Decimal Inch) 1.7500
Number of Spindle Speeds Variable
Minimum Spindle Speed (RPM) 70.00
Maximum Spindle Speed (RPM) 2800.00
Cross Slide Travel (mm) 110.00
Cross Slide Travel (Decimal Inch) 4.2500
Tailstock Taper Size 0MT
Overall Length (mm) 584.20
Overall Length (Decimal Inch) 24.0000
Overall Height (mm) 203.20
Overall Height (Decimal Inch) 6
Overall Depth (mm) 260.00
Overall Depth (Decimal Inch) 7.5000
Includes 1 1/4" Tailstock Drill Chuck; 3-Jaw Chuck; PLUS 2.5 Decimal Inch
$ 939.99

2% Off All Online Orders
Use Code: 2%OFF

Best Price Guarantee - Email Us A Better Published Price and We'll Beat It
