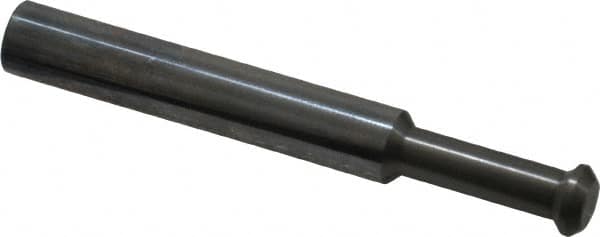

Accupro - 0.3" Cutter Head Diam, 1/32" Flat Width, 2-1/2" OAL, Solid Carbide, Single Right Hand Back Chamfer
Item #: 02703015
Brand: Accupro
Model #:
| Product Specifications | |
|---|---|
| Cutter Head Diameter (Decimal Inch) | 0.3000 |
| Included Angle | 90 |
| Chamfer Width (Decimal Inch) | 0.045 |
| Flat Width (Inch) | 1/32 |
| Flat Width (Decimal Inch) | 0.0310 |
| Back Chamfer Material | Solid Carbide |
| Overall Length (Inch) | 2-1/2 |
| Neck Diameter (Decimal Inch) | 0.2100 |
| Shank Diameter (Inch) | 5/16 |
| Cutting Direction | Right Hand |
| Finish/Coating | Bright |
| End Type | Single |
| Cutter Head to Shank Length (Decimal Inch) | 0.7750 |
