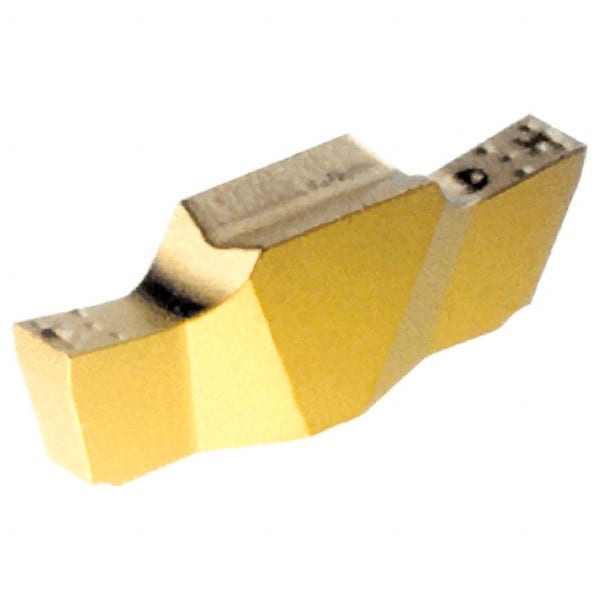

Iscar - 100010GEPI Grade IC528, 1mm Cutting Width Carbide Grooving Insert - 1.5mm Max Depth of Cut, Right Hand, 0.1mm Corner Radius, TiCN/TiN Finish
Item #: 85137008
Brand: Iscar
Model #: 6403330
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GEPI |
| Insert Size | 100010 |
| Material | Carbide |
| Cutting Width (mm) | 1.00 |
| Cutting Width (Decimal Inch) | 0.0394 |
| Maximum Depth of Cut (mm) | 1.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0591 |
| Manufacturer's Grade | IC528 |
| Coating | TiCN/TiN |
| Insert Hand | Right Hand |
| Relief Angle | 8 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.10 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Coating Process | PVD |
| Overall Length (mm) | 10.00 |
| Overall Length (Decimal Inch) | 0.3937 |
| Series | Cut Grip |
| Overall Width (mm) | 1.00 |
| Overall Width (Decimal Inch) | 0.0394 |
