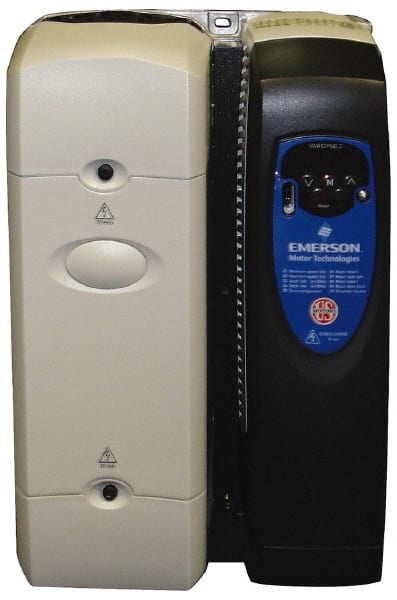

US Motors - Three Phase, 200-240 Volt, 10 hp, Variable Frequency Drive - 9.9" Wide x 10.33" Deep x 15.33" High, NEMA 1
Item #: 85174886
Brand: US Motors
Model #: VFK3201
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Variable Frequency Drive |
| Horsepower | 10 |
| Voltage | 200-240 |
| Output Amps at Standard Operation | 42 |
| Output Amps at Peak Operation | 31.00 |
| Frequency Hz | 60/50 |
| Phase | Three |
| Type of Enclosure | NEMA 1 |
| Output Frequency Range Hz | 0-1500 |
| Depth (Inch) | 10.3300 |
| Height (Inch) | 15.33 |
| Width (Decimal Inch) | 9.9000 |
| Approval Listing/Regulations | UL; CE; CE-PLENUM; C-Tick |
