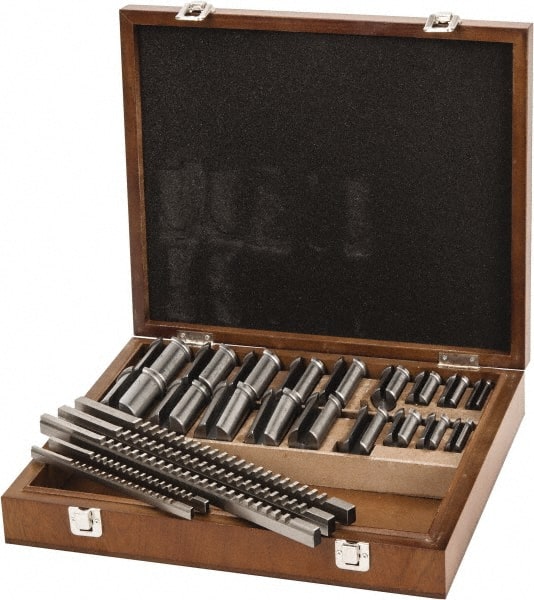

Value Collection - 30 Piece, 1/8 to 3/8" Keyway Width, Style B & C Keyway Broach Set - Bright Finish High Speed Steel Broach, Collared Bushing, 1/2 to 1-9/16" Bushing Diam
Item #: 85211852
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Keyway broaches are used for producing keyway-shaped holes in a workpiece. They may be used with shims if the depth cannot be broached in a single pass. They also require a guide bushing for producing the keyway.
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Broach Style | B; C |
| Minimum Keyway Width (Inch) | 1/8 |
| Maximum Keyway Width (Inch) | 3/8 |
| Minimum Bushing Diameter (Inch) | 1/2 |
| Maximum Bushing Diameter (Inch) | 1-9/16 |
| Bushing Type | Collared |
| Keyway Broach Type | Keyway |
| Keyway Width (Inch) | 1/8; 3/16; 1/4; 5/16; 3/8 |
| Number of Shims Required | 7 |
| Broach Material | High Speed Steel |
| Broach Coating | Bright |
| Number of Pieces | 30 |
| Vendor Set Number | No. 20 |
