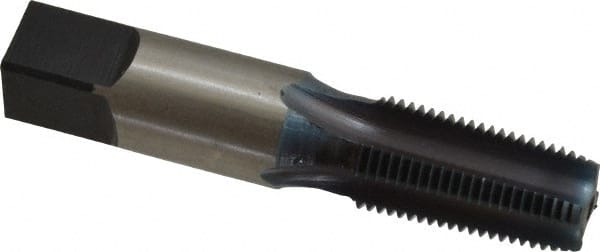

Reiff & Nestor - 1/8-27 NPT Thread, 4 Flute Standard Pipe Tap - 2-1/8" OAL, 3/4" Thread Length, 7/16" Shank Diam, Blue Diamond Finish, High Speed Steel
Item #: 85286730
Brand: Reiff & Nestor
Model #: 99620
Exact Tooling IR#: 04
Features and Benefits
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Blue Diamond is a specially treated electrochemical coating designed to prevent surface welding when tapping soft, stringy materials. Blue Diamond is a proprietary coating exclusive to Reiff & Nestor Company.
| Product Specifications | |
|---|---|
| Thread Size | 1/8-27 |
| Thread Standard | NPT |
| Material | High Speed Steel |
| Finish/Coating | Blue Diamond |
| Number of Flutes | 4 |
| Overall Length (Inch) | 2-1/8 |
| Hook | Regular |
| Projection (Decimal Inch) | 0.3120 |
| Thread Length (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.4375 |
| Square Length (Inch) | 3/8 |
| Square Size (Decimal Inch) | 0.3280 |
| Series/List | 120G |
