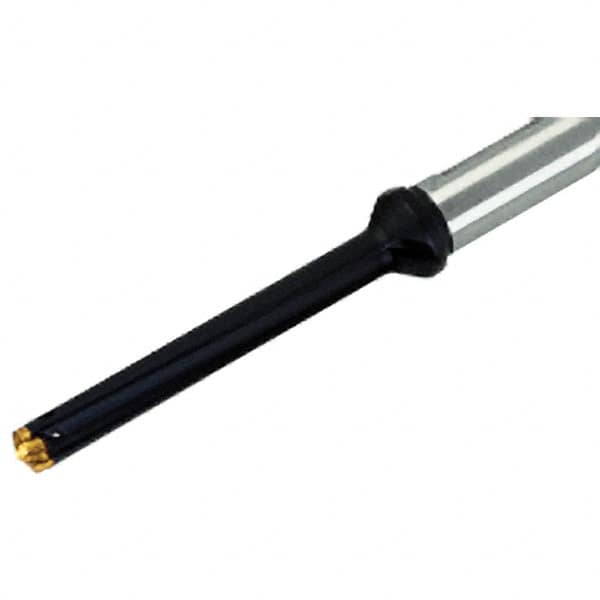

Iscar - 18 to 18.9mm Diam, 8xD, 144mm Max Depth, 25mm Shank Diam, 224.3mm OAL, Replaceable Tip Drill - IDI-SG, IDI-SK Insert, 18 Seat Size, DCM Toolholder, Series ChamDrill
Item #: 85399699
Brand: Iscar
Model #: 3200955
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | ChamDrill |
| Minimum Drill Diameter (mm) | 18.00 |
| Maximum Drill Diameter (mm) | 18.90 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (mm) | 144.00 |
| Shank Diameter (mm) | 25.00 |
| Insert Style | IDI-SG; IDI-SK |
| Insert Seat Size | 18 |
| Toolholder Style | DCM |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 168.30 |
| Overall Length (mm) | 224.30 |
| Shank Length (mm) | 56.00 |
