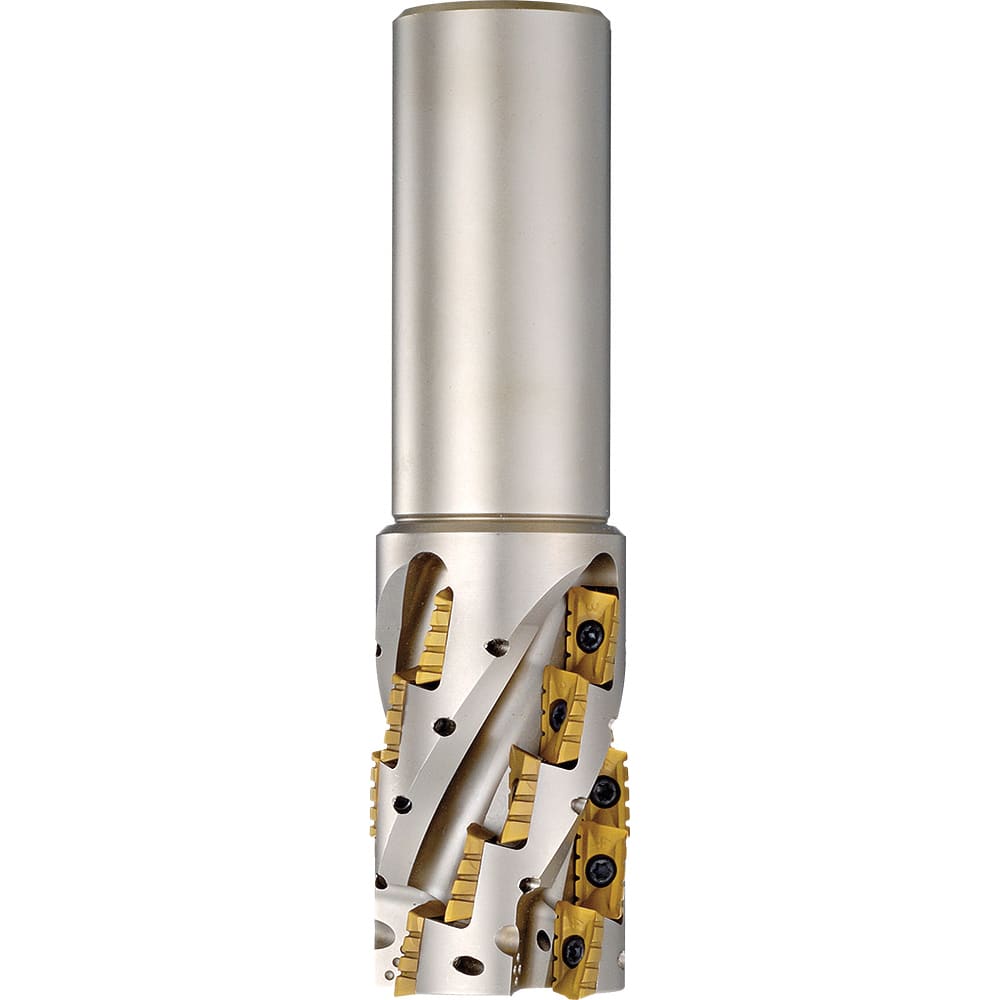

Kyocera - Indexable Square-Shoulder End Mills; Cutting Diameter (Decimal Inch): 1.5000 ; Cutting Diameter (Inch): 1.5 ; Shank Type: Cylindrical ; Shank Diameter (Inch): 1.2500 ; Overall Length/Projection (Decimal Inch): 5.2600 ; Lead Angle: 90
Item #: 85440881
Brand: Kyocera
Model #: 8824626
Product Specifications
Indexable Square-Shoulder End Mills; Cutting Diameter (Decimal Inch): 1.5000 ; Cutting Diameter (Inch): 1.5 ; Shank Type: Cylindrical ; Shank Diameter (Inch): 1.2500 ; Overall Length/Projection (Decimal Inch): 5.2600 ; Lead Angle: 90
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Cutting Diameter (Inch) | 1.5 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1.2500 |
| Overall Length/Projection (Decimal Inch) | 5.2600 |
| Lead Angle | 90 |
| Series | MEC |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (mm) | 59.00 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | MECH |
| Number of Flutes | 2 |
| Head Length (mm) | 73.00 |
| Weldon Flat | Yes |
| Insert Compatibility | BDMT170408ER-N3; BDMT170408ER-N4 |
| Shank Length (Decimal Inch) | 2.3860 |
| Toolholder Material | Steel |
| Rake Angle | 19 (Axial);-7 (Radial) |
| Multi-Use Tool | Yes |
| Hand of Holder | Right Hand |
