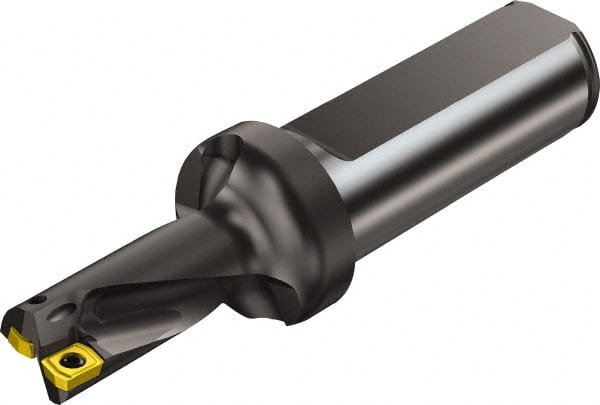

Sandvik Coromant - 2.5165" Max Drill Depth, 2xD, 1.187" Diam, Indexable Insert Drill - 2 Inserts, 1-1/4" Shank Diam, Straight Shank
Item #: 85468288
Brand: Sandvik Coromant
Model #: 5723325
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | A880..LXxx-02 |
| Drill Diameter (Decimal Inch) | 1.1870 |
| Maximum Drill Depth (Decimal Inch) | 2.5165 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Toolholder Material | Steel |
| Insert Size (mm) | 3.5 |
| Insert Size (Decimal Inch) | 0.1378 |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.2736 |
| Maximum Drill Diameter (mm) | 30.15 |
| Overall Length/Projection (mm) | 146.64 |
| Overall Length/Projection (Decimal Inch) | 5.7732 |
| Insert Compatibility (Outside or Peripheral) | 06P |
| Flute Length (mm) | 81.62 |
| Flute Length (Decimal Inch) | 3.2135 |
| Body Length (Decimal Inch) | 2.5170 |
| Body Length (mm) | 63.93 |
| Shank Length (mm) | 60.00 |
| Shank Length (Decimal Inch) | 2.3622 |
| Radius (Decimal Inch) | 0.5935 |
| Series | CoroDrill 880 |
