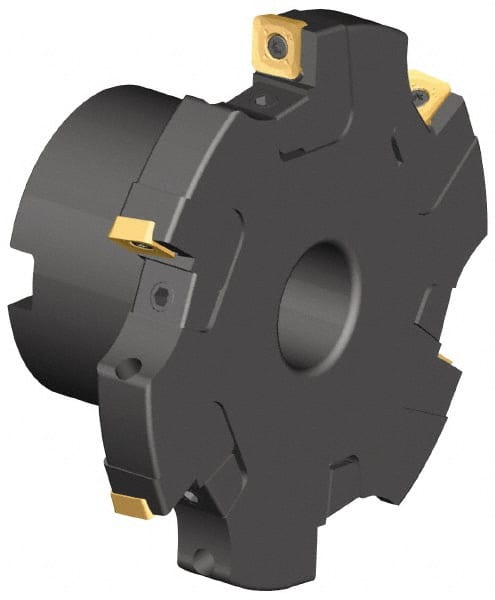

Kennametal - Arbor Hole Connection, 0.548" Cutting Width, 1.845" Depth of Cut, 6" Cutter Diam, 1-1/2" Hole Diam, 10 Tooth Indexable Slotting Cutter - KSSS Toolholder, SPCT, SPET, SPPT Insert
Item #: 85470912
Brand: Kennametal
Model #: 2268640
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 0.5480 |
| Maximum Depth of Cut (Decimal Inch) | 1.8450 |
| Cutter Diameter (Decimal Inch) | 6.0000 |
| Cutter Diameter (Inch) | 6 |
| Hole Diameter (Inch) | 1-1/2 |
| Hole Diameter (Decimal Inch) | 1.5000 |
| Number of Teeth | 10 |
| Toolholder Style | KSSS |
| Series | KSSS |
| Insert Style | SPCT; SPET; SPPT |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Screw |
| Maximum RPM | 14000 |
| Minimum Cutting Width (Decimal Inch) | 0.5510 |
| Maximum Cutting Width (Decimal Inch) | 0.6300 |
| Hub Diameter (Decimal Inch) | 2.2500 |
| Keyway Width (Inch) | 3/8 |
| Radius | No |
| Cutter Body Width (Decimal Inch) | 0.5450 |
| Complete Insert Compatibility2 | SPCT 10; SPCT 10T304PPERLD2; SPCT 10T304PPFRLE; SPCT 10T312PPELLD2; SPCT 10T312PPFLLE; SPCT 10T312PPFRLE; SPCT 10T316ENLD2; SPCT 10T316FNLE; SPCT 10T3PPFLLE; SPCT 10T3PPFRLE |
| Complete Insert Compatibility1 | SPCT 10T304PPELLD2; SPCT 10T304PPFLLE; SPCT 10T312PPERLD2; SPCT 10T320ENLD2; SPCT 10T3PPELLD2; SPCT 10T3PPERLD2 |
