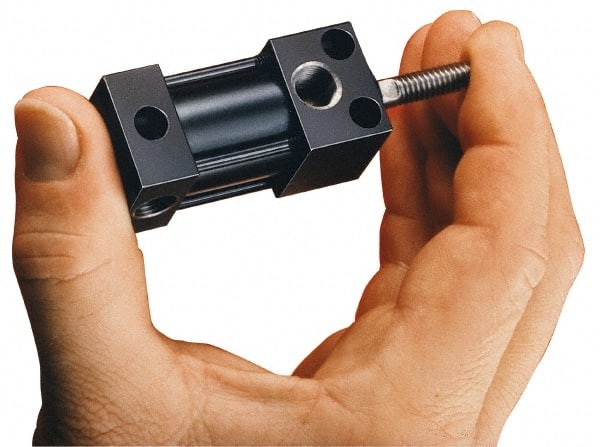

Parker - 4" Stroke x 1" Bore Double Acting Air Cylinder - 1/8 Port, 5/16-18 Rod Thread, 200 Max psi, -10 to 165°F
Item #: 85492924
Brand: Parker
Model #: 1.00NSU1604.00
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Double Acting |
| Bore Size (Inch) | 1 |
| Bore Size (Decimal Inch) | 1.00 |
| Rod Diameter (Inch) | 5 |
| Rod Diameter (Decimal Inch) | 0.313 |
| Stroke Length (Inch) | 4 |
| Mounting Style | Nose |
| Port Size | 1/8 |
| Port Type | NPTF |
| Length (Decimal Inch) | 7.370 |
| Material | Steel/Aluminum |
| Seal Material | Buna-N |
| Maximum Working Pressure (psi) | 200 |
| Rod Thread Size | 5/16-18 |
| Style | Male |
