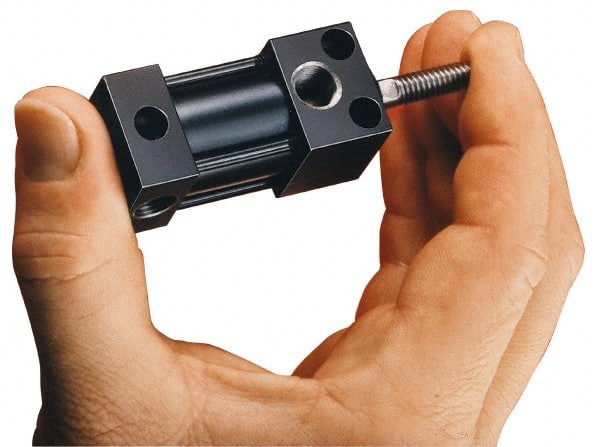

Parker - 1" Stroke x 1-1/4" Bore Double Acting Air Cylinder - 1/8 Port, 3/8-24 Rod Thread, 200 Max psi, -10 to 165°F
Item #: 85493096
Brand: Parker
Model #: 1.25NSU1601.00
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Double Acting |
| Bore Size (Inch) | 1-1/4 |
| Bore Size (Decimal Inch) | 1.25 |
| Rod Diameter (Inch) | 3/8 |
| Rod Diameter (Decimal Inch) | 0.375 |
| Stroke Length (Inch) | 1 |
| Mounting Style | Nose |
| Port Size | 1/8 |
| Port Type | NPTF |
| Length (Decimal Inch) | 4.370 |
| Material | Steel/Aluminum |
| Seal Material | Buna-N |
| Maximum Working Pressure (psi) | 200 |
| Rod Thread Size | 3/8-24 |
| Style | Male |
