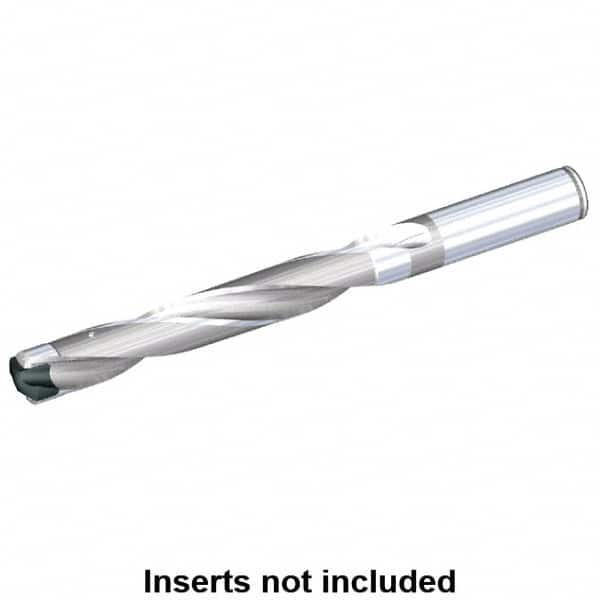

Kennametal - 27.78 to 28mm Diam, 10xD, 277.81mm Max Depth, 1-1/4" Shank Diam, 307.13mm Flute, 393.7mm OAL, Replaceable Tip Drill - KSEM1094 Insert, 6 Seat Size, Series KSEM
Item #: 85514669
Brand: Kennametal
Model #: 1729959
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 27.78 |
| Minimum Drill Diameter (Decimal Inch) | 1.0938 |
| Maximum Drill Diameter (mm) | 28.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.1024 |
| Drill Depth by Diameter Ratio | 10xD |
| Maximum Drill Depth (Decimal Inch) | 10.9400 |
| Maximum Drill Depth (mm) | 277.81 |
| Shank Diameter (mm) | 31.75 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Style | KSEM1094 |
| Insert Seat Size | 6 |
| Through Coolant | NonThrough Coolant |
| Coolant Hole Diameter (mm) | 4.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.1575 |
| Shank Type | Straight Shank |
| Tip Length (Decimal Inch) | 0.1700 |
| Flute Length (mm) | 307.13 |
| Flute Length (Decimal Inch) | 12.0917 |
| Overall Length (mm) | 393.70 |
| Overall Length (Decimal Inch) | 15.5000 |
| Shank Length (Decimal Inch) | 3.2500 |
