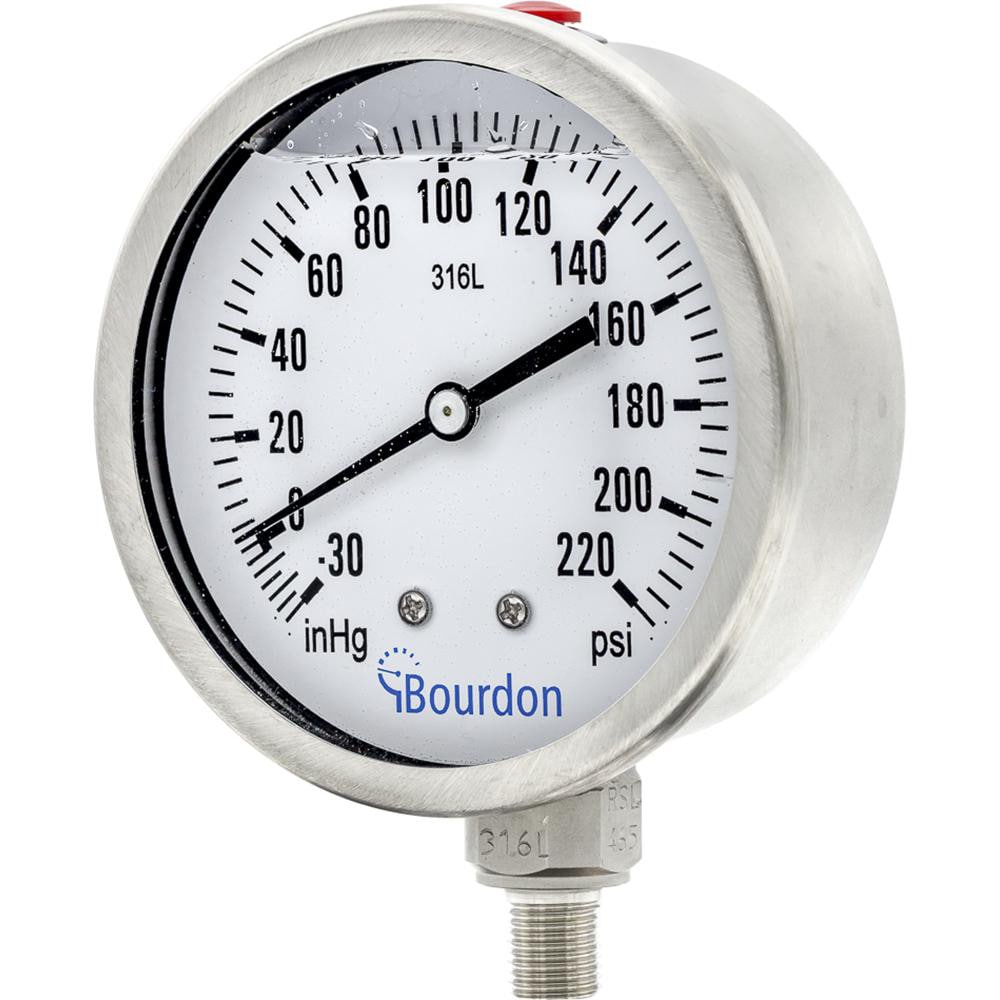

Brand: Bourdon / Part #: MEX5D52H81/0133
Item #: 99584690
Brand: Bourdon
Model #: MEX5D52H81/0133
Product Specifications
| Gauge Type | Commercial Pressure Gauges |
| Scale Type | Single |
| Accuracy (%) | Class 1 - 1% Accuracy (full scale) |
| Dial Type | Analog |
| Thread Type | NPT |
| Bourdon Tube Material | Stainless Steel |
| Type of Liquid Filler | Glycerin |
| Mount Type | Lower |
| Wetted Parts Material | Stainless Steel |
| Dial Diameter (Decimal Inch) | 4.0000 |
| Minimum Pressure (psi) | -30.00 |
| Maximum Pressure (Psi - 2 Decimals) | 220.00 |
| Minimum Hg | -30 |
| Maximum Hg | 220 |
| Liquid Filled | Yes |
| Case Material | Stainless Steel |
| Lens Material | Glass |
| Thread Size | 1/4 in NPT |
| Minimum Working Temperature (Deg F) | -4 |
| Maximum Working Temperature (F) | 158.000 |
| Minimum Working Temperature (Deg C) | -20 |
| Maximum Working Temprature (Deg C) | 70 |
