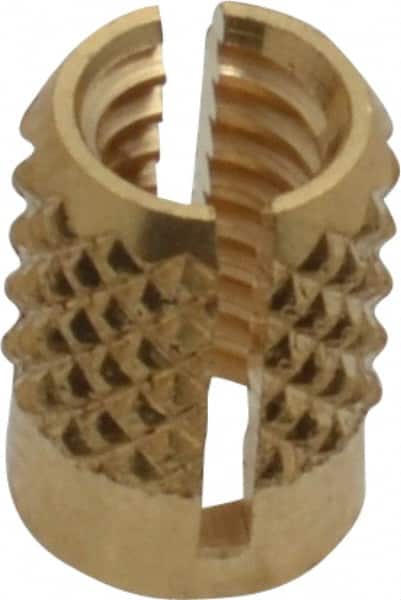

E-Z LOK - #8-32 UNC Brass Flush Press Fit Threaded Insert for Plastic - 5/16" OAL, 0.23" Insert Diam, 7/32" Hole Diam, 7/32" Drill
Item #: 85595270
Brand: E-Z LOK
Model #: 240-008-BR
Exact Tooling IR#: 04
Features and Benefits
Flush press fit threaded inserts do not have a flange, which allows screw and bolt heads to directly contact the workpiece material. They create a flush finish.
Brass is an alloy of copper and zinc that is durable, nonmagnetic and conductive.
| Product Specifications | |
|---|---|
| Type | Flush |
| For Material Type | Plastic |
| Material | Brass |
| System of Measurement | Inch |
| Thread Size | #8-32 |
| Overall Length (Decimal Inch) | 0.3130 |
| Insert Diameter (Decimal Inch) | 0.2300 |
| Hole Diameter (Decimal Inch) | 0.2190 |
| Drill Size (Inch) | 7/32 |
| Thread Standard | UNC |
