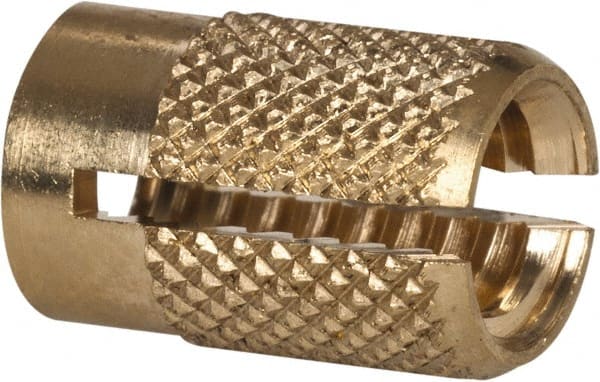

E-Z LOK - 1/4-20 UNC Brass Flush Press Fit Threaded Insert for Plastic - 1/2" OAL, 0.326" Insert Diam, 5/16" Hole Diam, 5/16" Drill
Item #: 85595304
Brand: E-Z LOK
Model #: 240-4-BR
Exact Tooling IR#: 04
Features and Benefits
Flush press fit threaded inserts do not have a flange, which allows screw and bolt heads to directly contact the workpiece material. They create a flush finish.
Brass is an alloy of copper and zinc that is durable, nonmagnetic and conductive.
| Product Specifications | |
|---|---|
| Type | Flush |
| For Material Type | Plastic |
| Material | Brass |
| System of Measurement | Inch |
| Thread Size | 1/4-20 |
| Overall Length (Decimal Inch) | 0.5000 |
| Insert Diameter (Decimal Inch) | 0.3260 |
| Hole Diameter (Decimal Inch) | 0.3130 |
| Drill Size (Inch) | 5/16 |
| Thread Standard | UNC |
