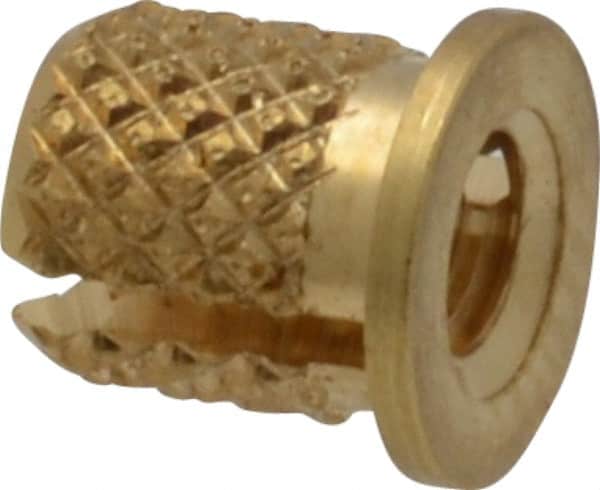

E-Z LOK - #6-32 UNC Brass Flanged Press Fit Threaded Insert for Plastic - 1/4" OAL, 0.199" Insert Diam, 3/16" Hole Diam, 3/16" Drill
Item #: 85595353
Brand: E-Z LOK
Model #: 260-006-BR
Exact Tooling IR#: 04
Features and Benefits
Flanged press fit threaded inserts have a flange on one end, which prevents direct contact between the workpiece material and the screw or bolt used in the insert.
Brass is an alloy of copper and zinc that is durable, nonmagnetic and conductive.
| Product Specifications | |
|---|---|
| Type | Flanged |
| For Material Type | Plastic |
| Material | Brass |
| System of Measurement | Inch |
| Thread Size | #6-32 |
| Overall Length (Decimal Inch) | 0.2500 |
| Insert Diameter (Decimal Inch) | 0.1990 |
| Hole Diameter (Decimal Inch) | 0.1880 |
| Head Diameter (Decimal Inch) | 0.2490 |
| Head Height (Decimal Inch) | 0.0210 |
| Drill Size (Inch) | 3/16 |
| Thread Standard | UNC |
