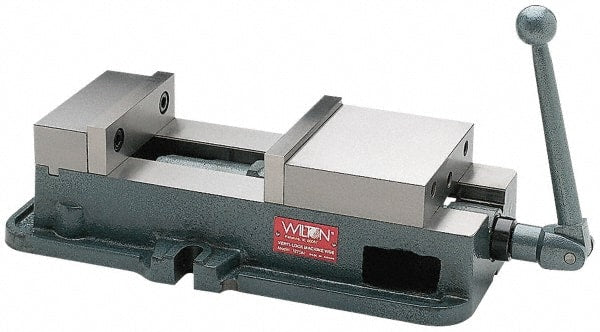

Wilton - 5" Jaw Width, 4-1/2" Jaw Opening Capacity, Horizontal Stationary Machine Vise - Manual Operation, 1 Station, 16-3/4" Long x 4.7" High x 1-3/4" Deep, 5" Jaw Height, 85,000 psi Max Clamp Force, Ductile Alloy
Item #: 85646255
Brand: Wilton
Model #: 12390
Exact Tooling IR#: 04
Features and Benefits
Horizontal vises slide from side to side during milling operations.
Stationary vises are used for machining straight surfaces. They can be fastened to the machine at either a parallel or at a right angle.
| Product Specifications | |
|---|---|
| Jaw Width (Inch) | 5 |
| Jaw Opening Capacity (Inch) | 4-1/2 |
| Throat Depth (Inch) | 1-3/4 |
| Orientation Type | Horizontal |
| Number of Stations | 1 |
| Base Motion Type | Stationary |
| Operation Type | Manual |
| Jaw Height (Inch) | 5 |
| Precision | No |
| Overall Length (Inch) | 16-3/4 |
| Overall Length (Decimal Inch) | 16.8750 |
| Vise Material | Ductile Alloy |
| Maximum Clamping Force (psi) | 85000.00 |
| Overall Height (Decimal Inch) | 4.7000 |
| Model Number | 1250N |
