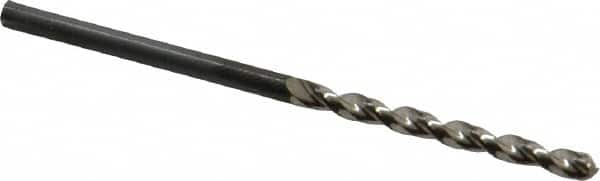

Jobber Length Drill Bit: 0.1004″ Dia, 130 °, High Speed Steel Bright/Uncoated, Right Hand Cut, Parabolic Flute, Straight-Cylindrical Shank, Series 549
Item #: 85747483
Brand: Guhring
Model #: 9005490025500
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.1004 |
| Drill Bit Size (mm) | 2.55 |
| Drill Bit Material | High Speed Steel |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | Bright |
| Drill Point Angle (Degrees) | 130 |
| Flute Type | Parabolic |
| Point Type | Standard |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Flute Length (Inch) | 1-3/16 |
| Shank Diameter (Decimal Inch) | 0.1004 |
| Overall Length (mm) | 57.00 |
| Overall Length (Inch) | 2-1/4 |
| Flute Length (mm) | 30.00 |
| Series | 549 |
| Flute Length x Diamter Ratio | 5xD |
| Flute By Diameter Ratio | 5xD |
| Maximum Drilling Depth (Decimal Inch) | 1.0310 |
| Maximum Drilling Depth (mm) | 26.18 |
| Shank Length (mm) | 27.00 |
| Drill Bit Diameter Tolerance | -0.014 to 0.000 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Standards | DIN 338 |
| Specification Number | DIN 338 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.1000 - 0.1500 |
| Drill Bit Size Range (mm) | 2.00 - 3.00 |
| Specification Designation | DIN |
