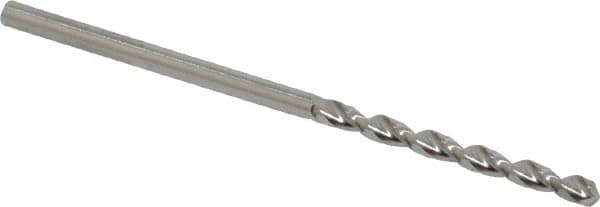

Jobber Length Drill Bit: 0.0819″ Dia, 130 °, Cobalt Bright/Uncoated, Right Hand Cut, Parabolic Flute, Straight-Cylindrical Shank, Series 622
Item #: 85757458
Brand: Guhring
Model #: 9006220020800
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.0819 |
| Drill Bit Size (Wire) | #45 |
| Drill Bit Material | Cobalt |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | Bright |
| Drill Point Angle (Degrees) | 130 |
| Flute Type | Parabolic |
| Point Type | Standard |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Flute Length (Inch) | 15/16 |
| Shank Diameter (Decimal Inch) | 0.0819 |
| Overall Length (Inch) | 1-15/16 |
| Series | 622 |
| Flute Length x Diamter Ratio | 5xD |
| Flute By Diameter Ratio | 5xD |
| Maximum Drilling Depth (Decimal Inch) | 0.8220 |
| Maximum Drilling Depth (mm) | 20.88 |
| Shank Length (mm) | 25.00 |
| Drill Bit Diameter Tolerance | -0.014 to 0.000 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Standards | DIN 338 |
| Specification Number | DIN 338 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.0500 - 0.1000 |
| Specification Designation | DIN |
