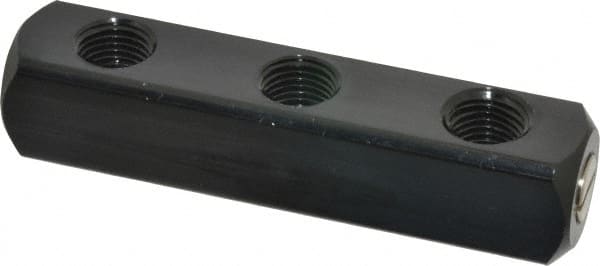

Coilhose Pneumatics - 1/4" Inlet, 1/4" Outlet Manifold - 3-3/4" Long x 0.81" Wide x 0.81" High, 1 Inlet Port, 3 Outlet Ports
Item #: 85804953
Brand: Coilhose Pneumatics
Model #: 3032
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inlet Size | 1/4" |
| Outlet Size | 1/4" |
| Number of Inlet Ports | 1 |
| Number Of Outlet Ports | 3 |
| Width (Decimal Inch) | 0.8100 |
| Overall Length (Inch) | 3-3/4 |
| Overall Length (mm) | 95.0000 |
| Overall Length (Decimal Inch) | 3.7500 |
| Height (Inch) | 13/16 |
| Height (mm) | 20.5700 |
| Height (Inch) | .81 |
| Body Material | Aluminum |
| Number of Ports | 4 |
| Outlet Center to Center Distance (Decimal Inch) | 1.25 |
| Thread Type | NPT |
