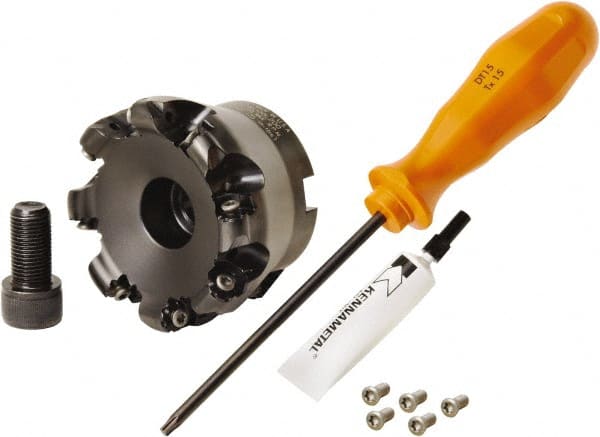

Kennametal - 76.2mm Cut Diam, 2.97mm Max Depth, 1" Arbor Hole, 8 Inserts, RN.J 1204... Insert Style, Indexable Copy Face Mill - KDR Cutter Style, 25,370 Max RPM, 2 High, Through Coolant, Series Rodeka
Item #: 85866234
Brand: Kennametal
Model #: 4178126
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 76.20 |
| Cutting Diameter (Decimal Inch) | 3.0000 |
| Maximum Depth of Cut (mm) | 2.97 |
| Maximum Depth of Cut (Decimal Inch) | 0.1170 |
| Arbor Hole Diameter (mm) | 25.40 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Overall Height (mm) | 50.80 |
| Overall Height (Inch) | 2 |
| Overall Height (Decimal Inch) | 2.0000 |
| Series | Rodeka |
| Number of Cutter Inserts | 8 |
| Insert Compatibility | RN.J 1204... |
| Cutter Style | KDR |
| Through Coolant | Yes |
| Maximum RPM | 25370 |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 2.1890 |
| Complete Insert Compatibility | RN.J 1204M0.. |
