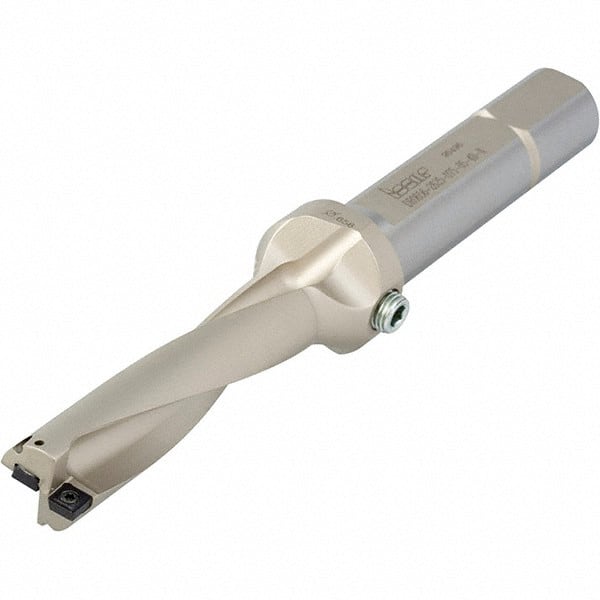

Iscar - 0.72" Max Drill Depth, 1xD, 23/32" Diam, Indexable Insert Drill - 2 Inserts, 3/4" Shank Diam, Straight Shank
Item #: 86005790
Brand: Iscar
Model #: 3201519
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DRM |
| Drill Diameter (Inch) | 23/32 |
| Drill Diameter (Decimal Inch) | 0.7188 |
| Maximum Drill Depth (Decimal Inch) | 0.7200 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 1xD |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (Decimal Inch) | 3.2100 |
| Insert Compatibility | SOGX-AL; SOMX-DT; SOMX-GF |
| Body Length (Decimal Inch) | 1.1800 |
| Shank Length (Decimal Inch) | 2.0300 |
| Series | DRDRILLS |
