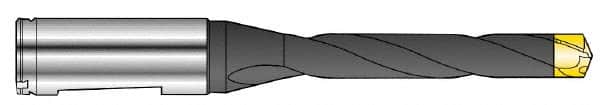

Seco - 14 to 14.99mm Diam, 3xD, 50mm Max Depth, 16mm Shank Diam, 59.4mm Flute, 127.4mm OAL, Replaceable Tip Drill - SD100 Insert, SD103 Toolholder, Series SD103
Item #: 86107646
Brand: Seco
Model #: 17538
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | SD103 |
| Minimum Drill Diameter (mm) | 14.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.5512 |
| Maximum Drill Diameter (mm) | 14.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.5900 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 50.00 |
| Shank Diameter (mm) | 16.00 |
| Insert Style | SD100 |
| Toolholder Style | SD103 |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Flute Length (mm) | 59.40 |
| Body Length (mm) | 79.40 |
| Overall Length (mm) | 127.40 |
| Shank Length (mm) | 48.00 |
