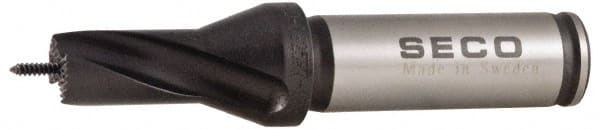

Seco - 17 to 17.99mm Diam, 1.5xD, 1.18" Max Depth, 3/4" Shank Diam, 0.65" Flute, 4.61" OAL, Replaceable Tip Drill - SD100 Insert, SD101 Toolholder, Series SD101
Item #: 86107752
Brand: Seco
Model #: 17619
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | SD101 |
| Minimum Drill Diameter (mm) | 17.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.6693 |
| Maximum Drill Diameter (mm) | 17.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.7083 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (Decimal Inch) | 1.1800 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Style | SD100 |
| Toolholder Style | SD101 |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Flute Length (Decimal Inch) | 0.6500 |
| Body Length (Decimal Inch) | 2.4090 |
| Overall Length (Decimal Inch) | 4.6100 |
| Shank Length (Decimal Inch) | 1.7720 |
