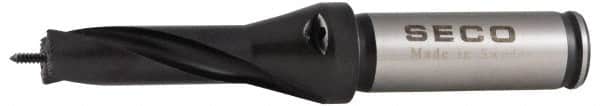

Seco - 19 to 19.99mm Diam, 3xD, 2.36" Max Depth, 3/4" Shank Diam, 2.736" Flute, 5.61" OAL, Replaceable Tip Drill - SD100 Insert, SD103 Toolholder, Series SD103
Item #: 86107810
Brand: Seco
Model #: 17647
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | SD103 |
| Minimum Drill Diameter (mm) | 19.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.7480 |
| Maximum Drill Diameter (mm) | 19.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.7870 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 2.3600 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Style | SD100 |
| Toolholder Style | SD103 |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Flute Length (Decimal Inch) | 2.7360 |
| Body Length (Decimal Inch) | 3.6500 |
| Overall Length (Decimal Inch) | 5.6100 |
| Shank Length (Decimal Inch) | 1.9690 |
