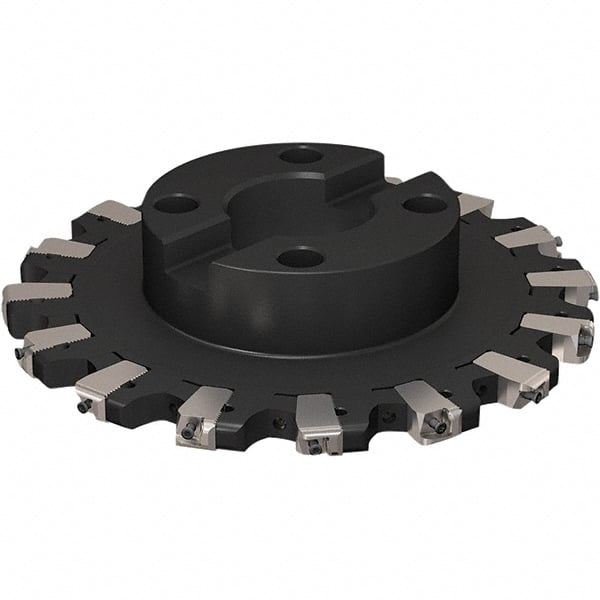

Seco - Shell Mount Connection, 17/32" Cutting Width, 58.98mm Depth of Cut, 250mm Cutter Diam, 60mm Hole Diam, 8 Tooth Indexable Slotting Cutter - R335.25 Toolholder, XNHQ 1407 Insert, Right Hand Cutting Direction
Item #: 86114188
Brand: Seco
Model #: 06344
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (mm) | 13.50 |
| Cutting Width (Decimal Inch) | 0.5310 |
| Maximum Depth of Cut (mm) | 58.98 |
| Cutter Diameter (mm) | 250.00 |
| Hole Diameter (mm) | 60.00 |
| Number of Teeth | 8 |
| Toolholder Style | R335.25 |
| Series | R335.25 |
| Insert Style | XNHQ 1407 |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 16 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Cartridge |
| Insert Holding Method | Screw |
| Maximum RPM | 5800 |
| Number of Flutes | 16 |
| Maximum Cutting Width (mm) | 17.00 |
| Hub Diameter (mm) | 130.00 |
| Keyway Width (mm) | 25.70 |
| Through Coolant | No |
