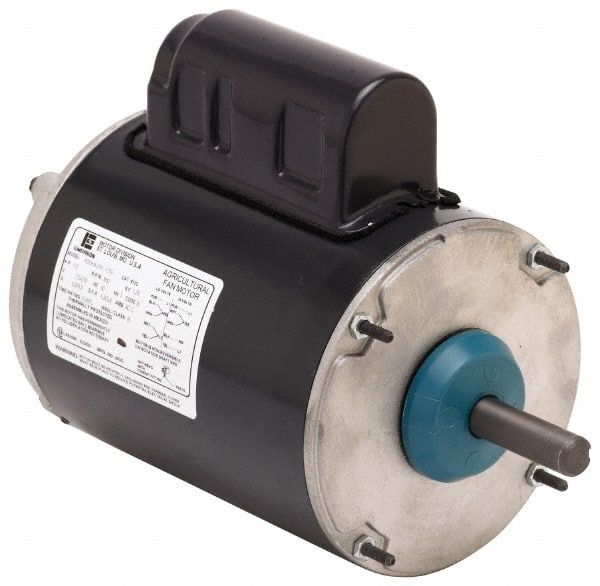

US Motors - 1 hp, TEAO Enclosure, Auto Thermal Protection, 850 RPM, 230 Volt, 60 Hz, Industrial Electric AC/DC Motor - Size 56 Frame, C-Face Mount, 1 Speed, Ball Bearings, 5.8 Full Load Amps, F Class Insulation, CW Shaft End
Item #: 86147154
Brand: US Motors
Model #: FD1AA4KC
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type of Enclosure | TEAO |
| Horsepower | 1 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 850 |
| Voltage | 230 |
| Frequency Hz | 60 |
| Frame Size | 56 |
| Mount Type | C-Face |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Full Load Amperage | 5.8 |
| Insulation Class | F |
| Full Load Efficiency Rating | 71.70 |
| Motor Run Capacitor Micro Farid | 25.00 |
| Motor Run Capacitor Volts | 0 |
| Service Factor Rating | 1.00 |
| Motor Rotation | CW Shaft End |
| PSC Code | 6105 |
