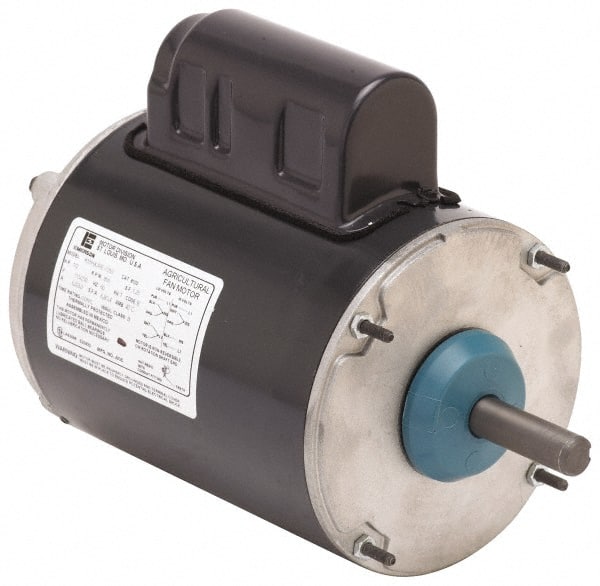

US Motors - 1 hp, TEAO Enclosure, Auto Thermal Protection, 1,725 RPM, 115/230 Volt, 60 Hz, Industrial Electric AC/DC Motor - Size 56 Frame, Rigid Mount, 1 Speed, Ball Bearings, 8.4 / 4.2 Full Load Amps, B Class Insulation, Reversible
Item #: 86147188
Brand: US Motors
Model #: FD1CA2P
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type of Enclosure | TEAO |
| Horsepower | 1 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 1725 |
| Voltage | 115/230 |
| Frequency Hz | 60 |
| Frame Size | 56 |
| Mount Type | Rigid |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Full Load Amperage | 8.4 / 4.2 |
| Insulation Class | B |
| Full Load Efficiency Rating | 81.50 |
| Motor Run Capacitor Micro Farid | 35.00 |
| Motor Run Capacitor Volts | 0 |
| Service Factor Rating | 1.15 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
