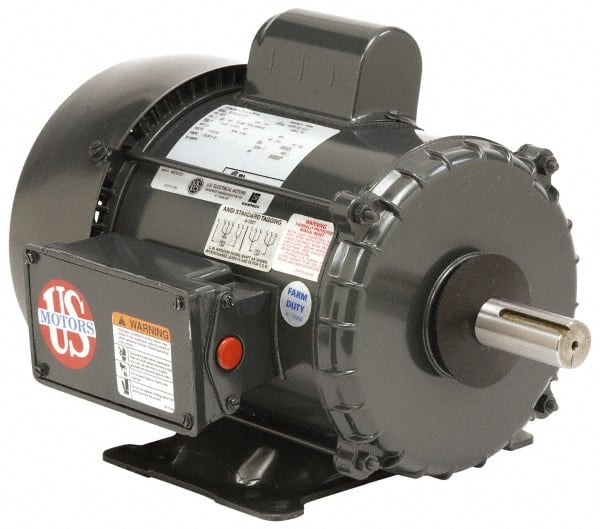

US Motors - 3/4 hp, TEAO Enclosure, Auto Thermal Protection, 3,450 RPM, 115/230 Volt, 60 Hz, Industrial Electric AC/DC Motor - Size 48 Frame, Rigid Mount, 1 Speed, Ball Bearings, 10.6/5.3 Full Load Amps, B Class Insulation, CW Drive End Rev
Item #: 86147352
Brand: US Motors
Model #: FD34CA1P4
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type of Enclosure | TEAO |
| Horsepower | 3/4 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 3450 |
| Voltage | 115/230 |
| Frequency Hz | 60 |
| Frame Size | 48 |
| Mount Type | Rigid |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Full Load Amperage | 10.6/5.3 |
| Insulation Class | B |
| Full Load Efficiency Rating | 72.90 |
| Motor Run Capacitor Micro Farid | 0.00 |
| Motor Run Capacitor Volts | 0 |
| Service Factor Rating | 1.00 |
| Motor Rotation | CW Drive End Rev |
| PSC Code | 6105 |
