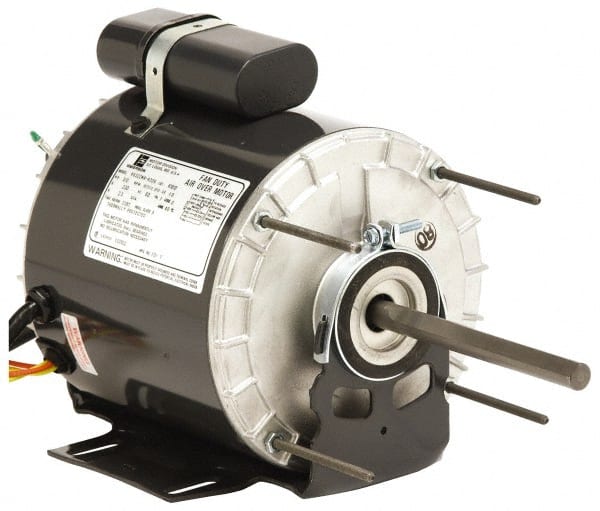

US Motors - 3/4 hp, TEAO Enclosure, Auto Thermal Protection, 1,075 RPM, 115/230 Volt, 60 Hz, Industrial Electric AC/DC Motor - Size 56 Frame, Cradle Mount, 1 Speed, Ball Bearings, 9.2/4.6 Full Load Amps, B Class Insulation, CW Shaft End
Item #: 86147477
Brand: US Motors
Model #: 1809
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type of Enclosure | TEAO |
| Horsepower | 3/4 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 1075 |
| Voltage | 115/230 |
| Frequency Hz | 60 |
| Frame Size | 56 |
| Mount Type | Cradle |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Full Load Amperage | 9.2/4.6 |
| Insulation Class | B |
| Full Load Efficiency Rating | 74.60 |
| Motor Run Capacitor Micro Farid | 12.50 |
| Motor Run Capacitor Volts | 0 |
| Service Factor Rating | 1.00 |
| Motor Rotation | CW Shaft End |
| PSC Code | 6105 |
