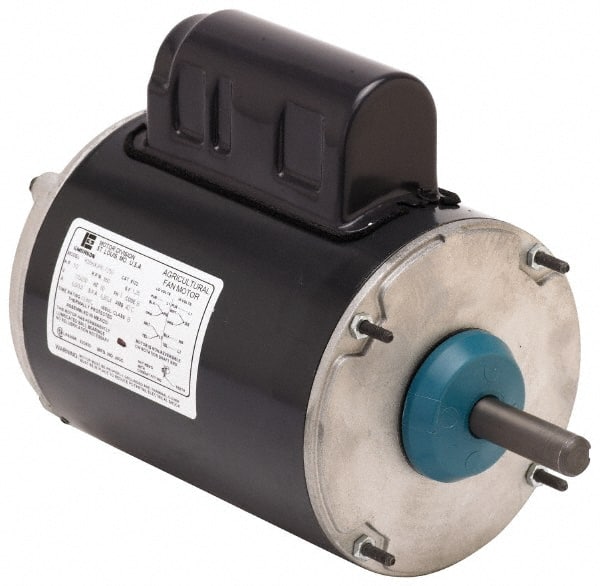

US Motors - 1/2 hp, TEAO Enclosure, Auto Thermal Protection, 1,700 RPM, 115/230 Volt, 60 Hz, Industrial Electric AC/DC Motor - Size 48 Frame, Cradle/Stud Mount, 1 Speed, Ball Bearings, 5.0/2.5 Full Load Amps, B Class Insulation, Reversible
Item #: 86147493
Brand: US Motors
Model #: 1850
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type of Enclosure | TEAO |
| Horsepower | 1/2 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 1700 |
| Voltage | 115/230 |
| Frequency Hz | 60 |
| Frame Size | 48 |
| Mount Type | Cradle/Stud |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Full Load Amperage | 5.0/2.5 |
| Insulation Class | B |
| Full Load Efficiency Rating | 76.90 |
| Motor Run Capacitor Micro Farid | 20.00 |
| Motor Run Capacitor Volts | 0 |
| Service Factor Rating | 1.00 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
