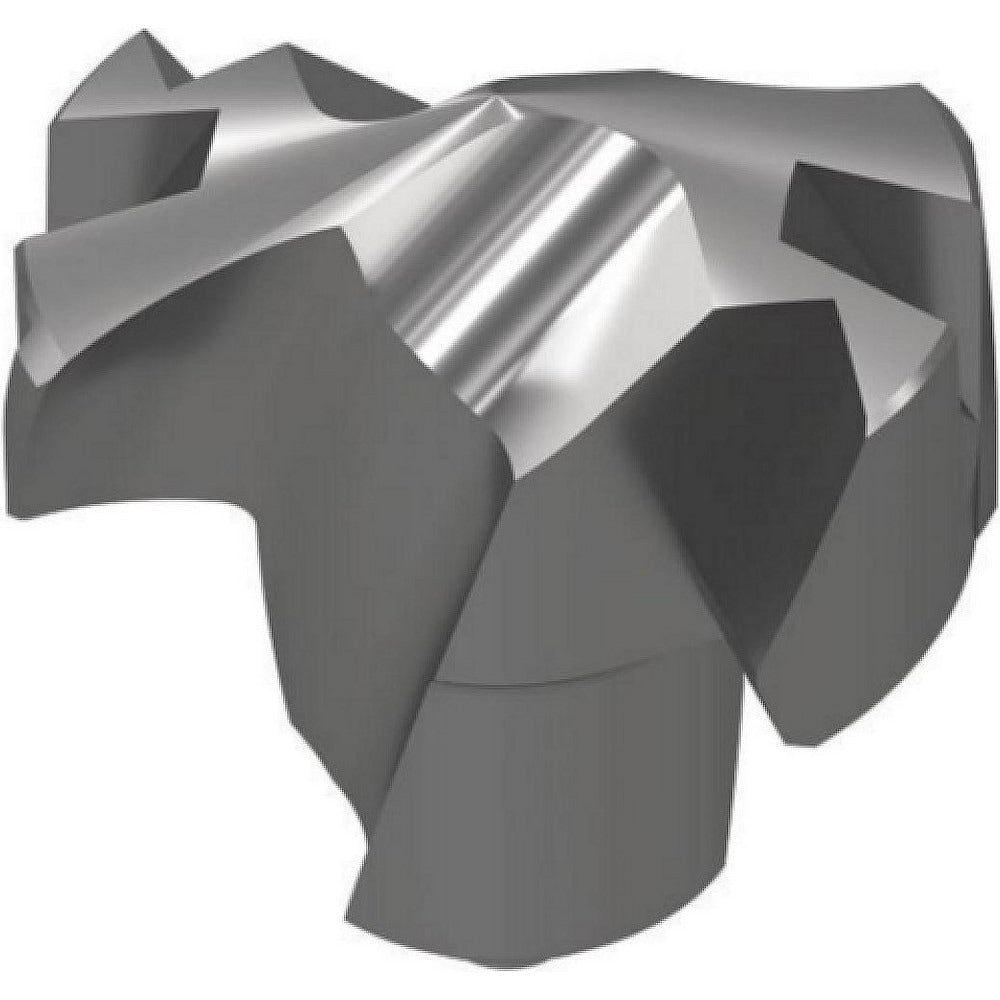

Brand: Widia / Part #: 4003228
Item #: 02412377
Brand: Widia
Model #: 4003228
Product Specifications
| Maximum Drill Diameter (mm) | 23.00 |
| Point Angle | 140.00 |
| Diameter (mm) | 23.0000 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | WU25PD |
| Material Grade | Submicron |
| Cutting Direction | Right Hand |
| Series | Top Drill M1 |
| Coating Process | PVD |
| Insert Geometry | UPM |
| Insert Seat Size | W32 |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Height (mm) | 24.7300 |
| Cutting Diameter (mm) | 23.00 |
| Drill Point Angle | 140 |
| Insert Holding Method | Spring Clamp |
| ISO Number | TDM2300UPM |
| Coolant Through | No |
| Minimum Cutting Diameter (mm) | 23.00 |
| Coating Classification | PVD |
| Applications | Drilling |
| Coating/Finish | TiAlN |
| Included Angle Degree | 140 |
| Number Of Flutes | 2 |
