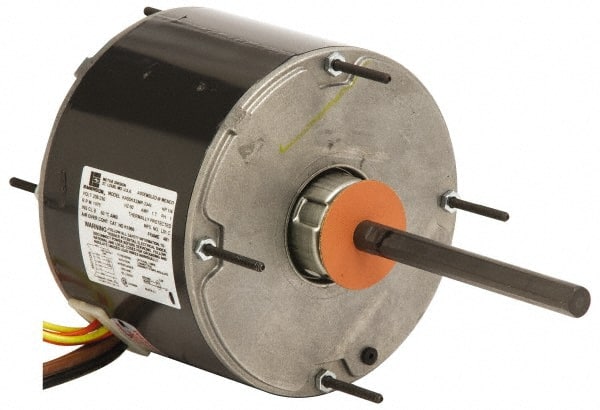

US Motors - 1/6 hp, TEAO Enclosure, Auto Thermal Protection, 825 RPM, 460 Volt, 60 Hz, Industrial Electric AC/DC Motor - Size 48 Frame, Stud Mount, 1 Speed, Sleeve Bearings, 0.58 Full Load Amps, B Class Insulation, CCW Lead End
Item #: 86224714
Brand: US Motors
Model #: 8059
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type of Enclosure | TEAO |
| Horsepower | 1/6 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 825 |
| Voltage | 460 |
| Frequency Hz | 60 |
| Frame Size | 48 |
| Mount Type | Stud |
| Number of Speeds | 1 |
| Bearing Type | Sleeve |
| Full Load Amperage | 0.58 |
| Insulation Class | B |
| Full Load Efficiency Rating | 47.90 |
| Motor Run Capacitor Micro Farid | 5.00 |
| Motor Run Capacitor Volts | 0 |
| Service Factor Rating | 1.00 |
| Motor Rotation | CCW Lead End |
| PSC Code | 6105 |
