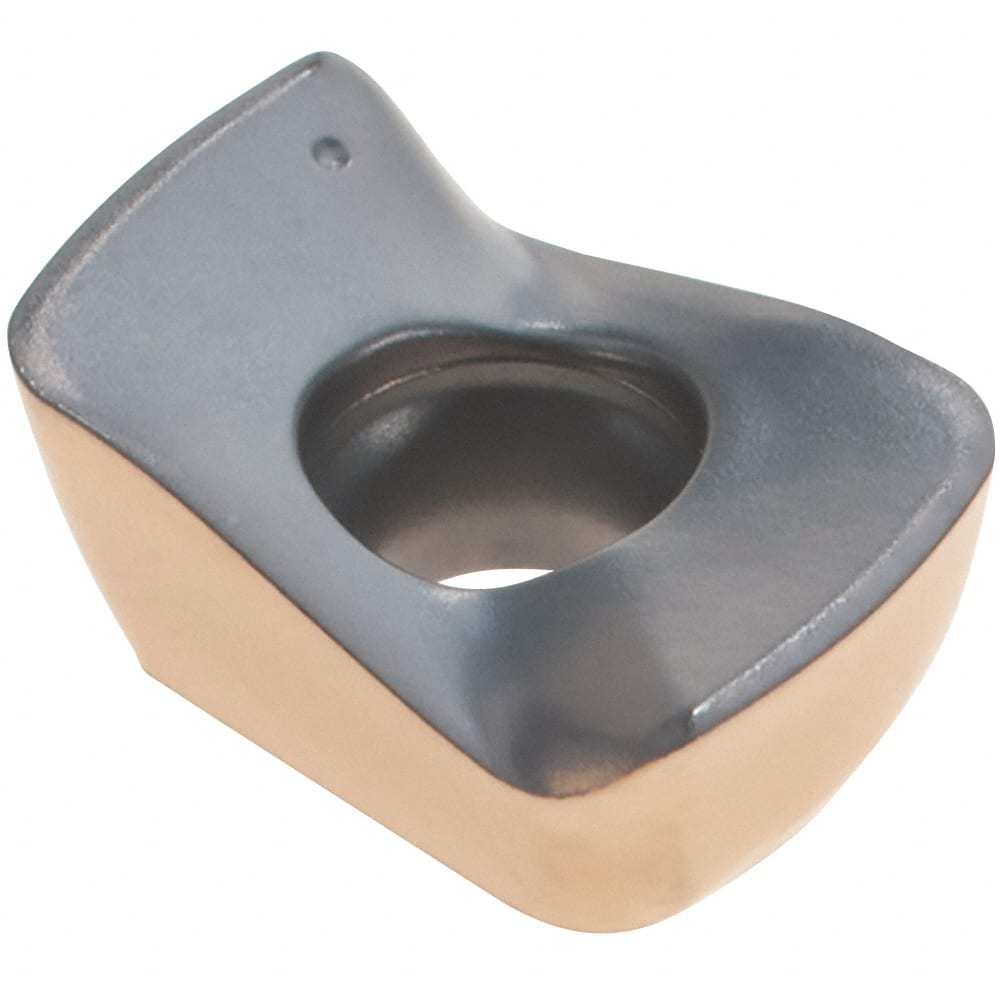

Iscar - APKT1003 FF Grade IC830 Carbide Milling Insert - TiAlN/TiN Finish, 0.1378" Thick, 1.9mm Corner Radius
Item #: 86237799
Brand: Iscar
Model #: 5606397
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | APKT |
| Insert Size | 1003 |
| Material | Carbide |
| Manufacturer's Grade | IC830 |
| Coating | TiAlN/TiN |
| Width (Decimal Inch) | 0.2600 |
| Length (Decimal Inch) | 0.4250 |
| Thickness (Decimal Inch) | 0.1378 |
| Corner Radius (Decimal Inch) | 0.0748 |
| Corner Radius (mm) | 1.90 |
| Relief Angle | 11.000 |
| Coating Process | PVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | FF |
| Maximum Depth of Cut (mm) | 1.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.0710 |
| ISO Number | APKT 1003R8T-FF |
