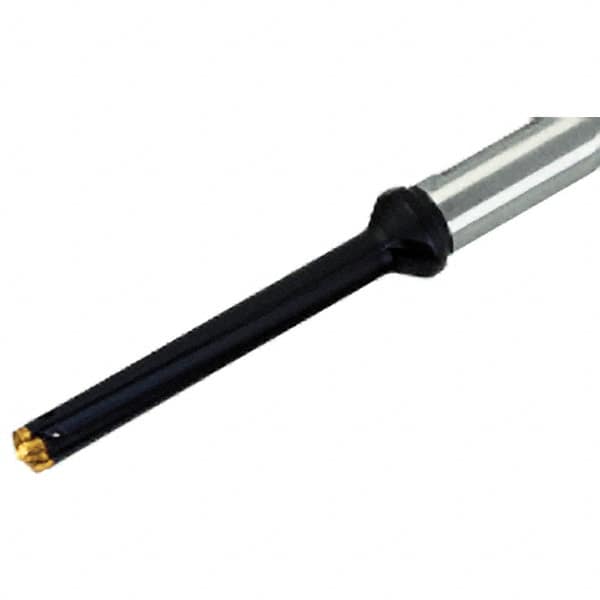

Iscar - 12 to 12.9mm Diam, 8xD, 96mm Max Depth, 16mm Shank Diam, 160.3mm OAL, Replaceable Tip Drill - IDI-SG, IDI-SK Insert, 12 Seat Size, DCM Toolholder, Series ChamDrill
Item #: 86315066
Brand: Iscar
Model #: 3200949
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | ChamDrill |
| Minimum Drill Diameter (mm) | 12.00 |
| Maximum Drill Diameter (mm) | 12.90 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (mm) | 96.00 |
| Shank Diameter (mm) | 16.00 |
| Insert Style | IDI-SG; IDI-SK |
| Insert Seat Size | 12 |
| Toolholder Style | DCM |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 112.30 |
| Overall Length (mm) | 160.30 |
| Shank Length (mm) | 48.00 |
