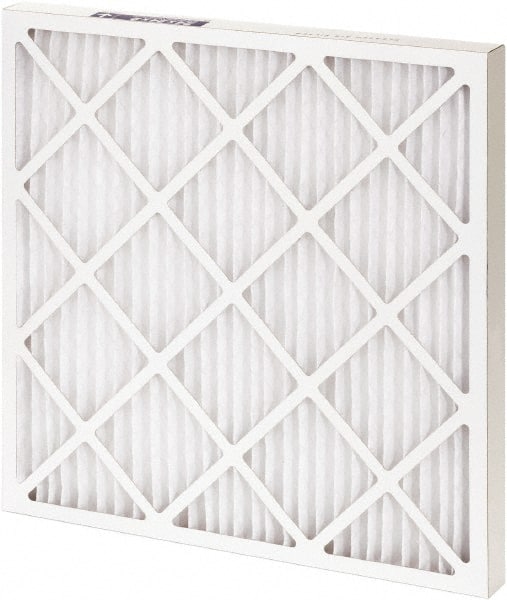

Made in USA - 25" Noml Height x 29" Noml Width x 4" Noml Depth, 55% Capture Efficiency, Wire-Backed Pleated Air Filter - MERV 10, Synthetic, Integrated Paperboard Frame, 500 Max FPM, 3,150 CFM, For Any Unit
Item #: 86318284
Brand: Made in USA
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Filter Type | Wire-Backed Pleated |
| Nominal Height (Inch) | 25 |
| Nominal Width (Inch) | 29 |
| Nominal Depth (Inch) | 4 |
| Particle Capture Efficiency (%) | 55 |
| MERV Rating | 10 |
| Media Material | Synthetic |
| Integrated Frame | Yes |
| Actual Height (Inch) | 24-3/8 |
| Actual Width (Inch) | 28-3/8 |
| Actual Depth (Inch) | 3-3/4 |
| Maximum Air Flow (FPM) | 500 |
| CFM | 3150 |
| Initial Resistance at FPM (Inches w.g.) | .17 (at 500 FPM) |
| Final Resistance at FPM (Inches w.g.) | 1 |
| Maximum Temperature (F) | 200 |
| Capacity | High |
| Pleats Per Square Foot | 15 |
| Frame Material | Paperboard |
| For Use With | Any Unit |
| Standards Met | UL 900; ASHRAE 52.2-2012 |
