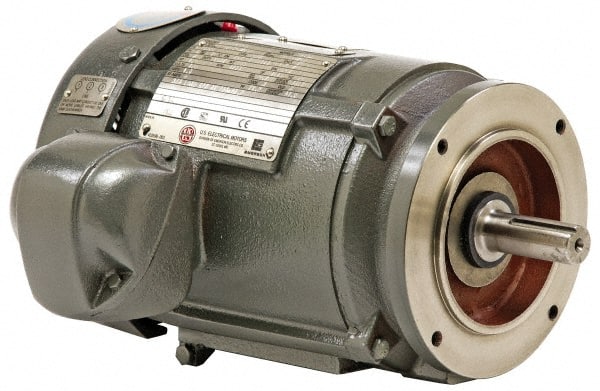

US Motors - 1 hp, TEFC Enclosure, No Thermal Protection, 1,755 RPM, 460 Volt, 60 Hz, Three Phase Premium Efficient Motor - Size 143 Frame, C-Face Mount, 1 Speed, Ball Bearings, 1.5 Full Load Amps, F Class Insulation, Reversible
Item #: 86334679
Brand: US Motors
Model #: 8P1P2CCR
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase Premium Efficient |
| Type of Enclosure | TEFC |
| Horsepower | 1 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 1755 |
| Voltage | 460 |
| Frequency Hz | 60 |
| Frame Size | 143 |
| Mount Type | C-Face |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | General Purpose |
| Full Load Amperage | 1.5 |
| Insulation Class | F |
| Frame Material | Cast Iron |
| Overall Length (Decimal Inch) | 13.5000 |
| Full Load Efficiency Rating | 85.5 |
| Service Factor Rating | 1.15 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
