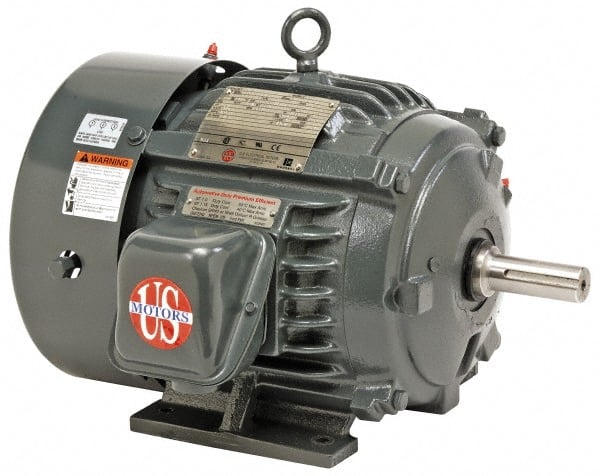

US Motors - 1/3 hp, TEFC Enclosure, No Thermal Protection, 1,140 RPM, 230/460 Volt, 60 Hz, Three Phase Premium Efficient Motor - Size 56 Frame, Rigid Mount, 1 Speed, Ball Bearings, 1.28/0.64 Full Load Amps, B Class Insulation, Reversible
Item #: 86335866
Brand: US Motors
Model #: A13P3B
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase Premium Efficient |
| Type of Enclosure | TEFC |
| Horsepower | 1/3 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 1140 |
| Voltage | 230/460 |
| Frequency Hz | 60 |
| Frame Size | 56 |
| Mount Type | Rigid |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | Definite Purpose |
| Full Load Amperage | 1.28/0.64 |
| Insulation Class | B |
| Frame Material | Cast Iron |
| Overall Length (Decimal Inch) | 11.2600 |
| Full Load Efficiency Rating | 74.2 |
| Service Factor Rating | 1 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
