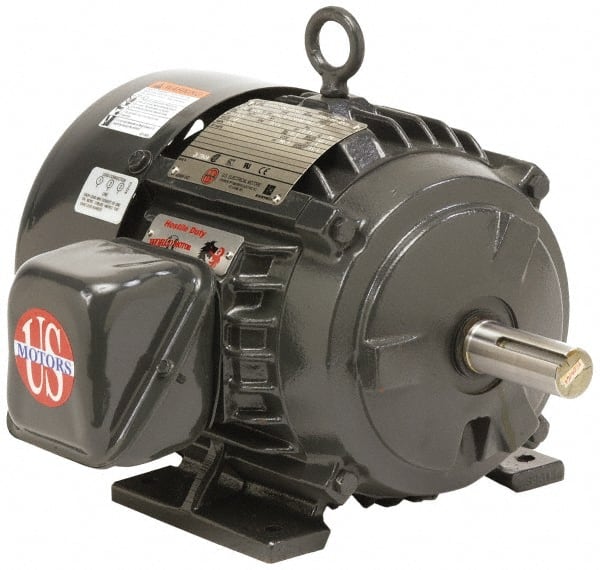

US Motors - 75 hp, TEFC Enclosure, No Thermal Protection, 1,190 RPM, 230/460 Volt, 60 Hz, Three Phase Energy Efficient Motor - Size 405 Frame, Rigid Mount, 1 Speed, Ball Bearings, 179/90 Full Load Amps, F Class Insulation, Reversible
Item #: 86342078
Brand: US Motors
Model #: H75E3E
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase Energy Efficient |
| Type of Enclosure | TEFC |
| Horsepower | 75 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 1190 |
| Voltage | 230/460 |
| Frequency Hz | 60 |
| Frame Size | 405 |
| Mount Type | Rigid |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | General Purpose |
| Full Load Amperage | 179/90 |
| Insulation Class | F |
| Frame Material | Cast Iron |
| Overall Length (Decimal Inch) | 37.6300 |
| Full Load Efficiency Rating | 93.6 |
| Service Factor Rating | 1.15 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
