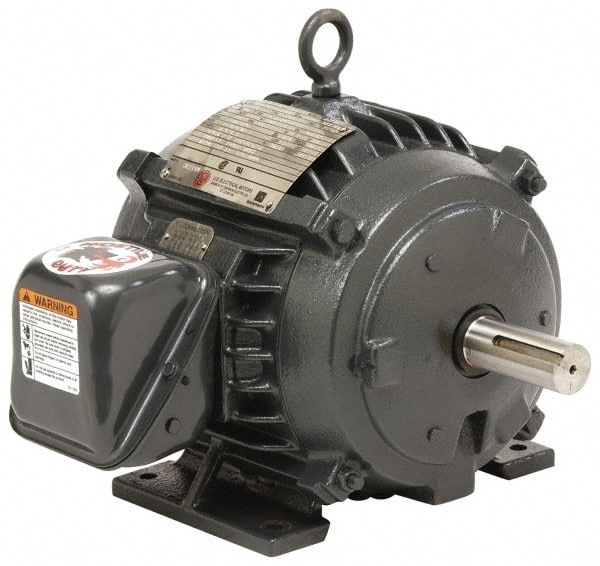

US Motors - 30 hp, TEFC Enclosure, No Thermal Protection, 1,180 RPM, 200 Volt, 60 Hz, Three Phase Energy Efficient Motor - Size 364 Frame, Rigid Mount, 2 Speed, Ball Bearings, 83 Full Load Amps, F Class Insulation, Reversible
Item #: 86343001
Brand: US Motors
Model #: HVW30EL36H
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase Energy Efficient |
| Type of Enclosure | TEFC |
| Horsepower | 30 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 1180 |
| Voltage | 200 |
| Frequency Hz | 60 |
| Frame Size | 364 |
| Mount Type | Rigid |
| Number of Speeds | 2 |
| Bearing Type | Ball |
| Applications | Special Application |
| Full Load Amperage | 83 |
| Insulation Class | F |
| Frame Material | Cast Iron |
| Overall Length (Decimal Inch) | 29.3800 |
| Full Load Efficiency Rating | 90.2 |
| Service Factor Rating | 1.15 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
