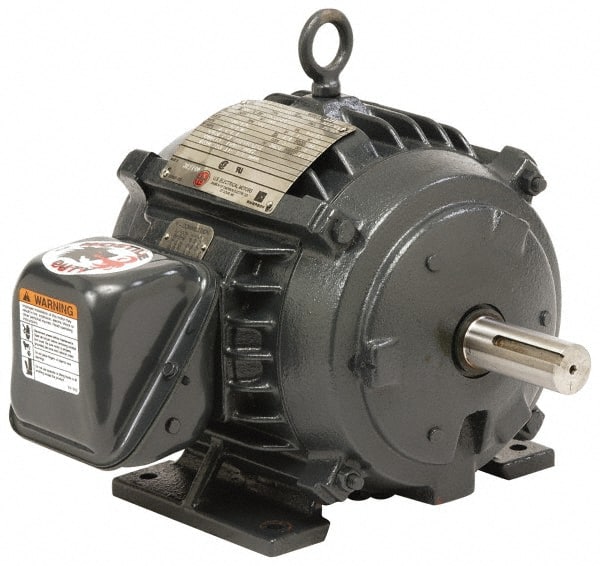

US Motors - 10 hp, TEFC Enclosure, No Thermal Protection, 1,755 RPM, 575 Volt, 60 Hz, Three Phase Energy Efficient Motor - Size 215 Frame, Rigid Mount, 2 Speed, Ball Bearings, 10.2 Full Load Amps, F Class Insulation, Reversible
Item #: 86343746
Brand: US Motors
Model #: HVW10EL9G
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase Energy Efficient |
| Type of Enclosure | TEFC |
| Horsepower | 10 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 1755 |
| Voltage | 575 |
| Frequency Hz | 60 |
| Frame Size | 215 |
| Mount Type | Rigid |
| Number of Speeds | 2 |
| Bearing Type | Ball |
| Applications | Special Application |
| Full Load Amperage | 10.2 |
| Insulation Class | F |
| Frame Material | Cast Iron |
| Overall Length (Decimal Inch) | 16.2500 |
| Full Load Efficiency Rating | 87.5 |
| Service Factor Rating | 1.15 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
