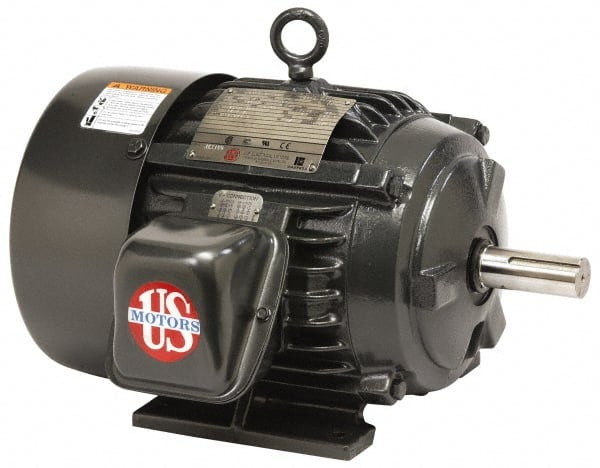

US Motors - 2 hp, TEFC Enclosure, No Thermal Protection, 1,750 RPM, 200 Volt, 60 Hz, Three Phase Premium Efficient Motor - Size 145 Frame, Rigid Mount, 1 Speed, Ball Bearings, 6.6 Full Load Amps, F Class Insulation, Reversible
Item #: 86345253
Brand: US Motors
Model #: HW2V2H2
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase Premium Efficient |
| Type of Enclosure | TEFC |
| Horsepower | 2 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 1750 |
| Voltage | 200 |
| Frequency Hz | 60 |
| Frame Size | 145 |
| Mount Type | Rigid |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | Special Application |
| Full Load Amperage | 6.6 |
| Insulation Class | F |
| Frame Material | Steel |
| Overall Length (Decimal Inch) | 13.1300 |
| Full Load Efficiency Rating | 86.5 |
| Service Factor Rating | 1.15 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
